Red fire main pipework and valve stations in a plant room at the Discovery Park biomass power station

Job 02 / 6 / BWSC · 2017

Discovery Park

Sandwich, Kent

27.8MW

New-build 27.8MW biomass power station

Fire mainsProcess linesTwo years on site

Discovery Park in Sandwich is a new-build 27.8MW biomass power station, and KBVI went in for BWSC before any other work could start. The job opened with fire mains and fire suppressant systems. KBVI ran the pipework on site and installed it, prefabricating to drawings and site running the rest. The crew then stayed for two years and worked nearly every pipeline in the plant: ammonia, demin water, cooling water, steam, oil, hydraulic, and the argon fire suppressant lines.

  • 01Fire mains and fire suppressant systems
  • 02On site before any other work could start
  • 03Prefabrication and installation to drawings, then site run
  • 04Ammonia, demin water, cooling water and steam lines
  • 05Oil, hydraulic and argon fire suppressant lines

From the job

24 frames · KBVI's own photographs · no stock, no renders

Red fire main pipework in a plant room at Discovery Park
Process and fire pipework running through the biomass plant

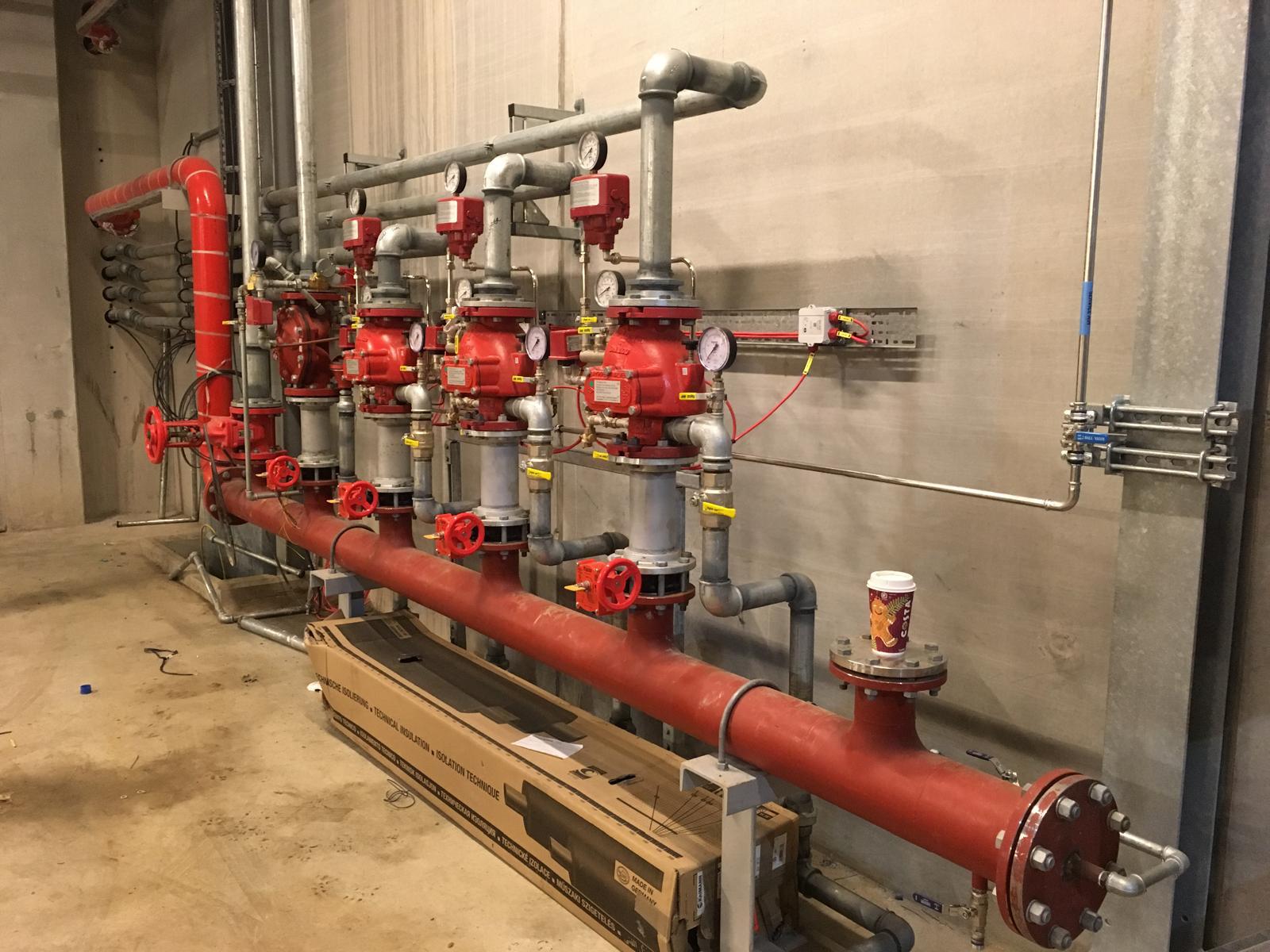

Valve station and gauges on fire main pipework
Galvanised process pipework alongside red fire mains
Red fire main with deluge valve stations and pressure gauges
Pipework and valves through the plant room
Process lines running along a plant wall

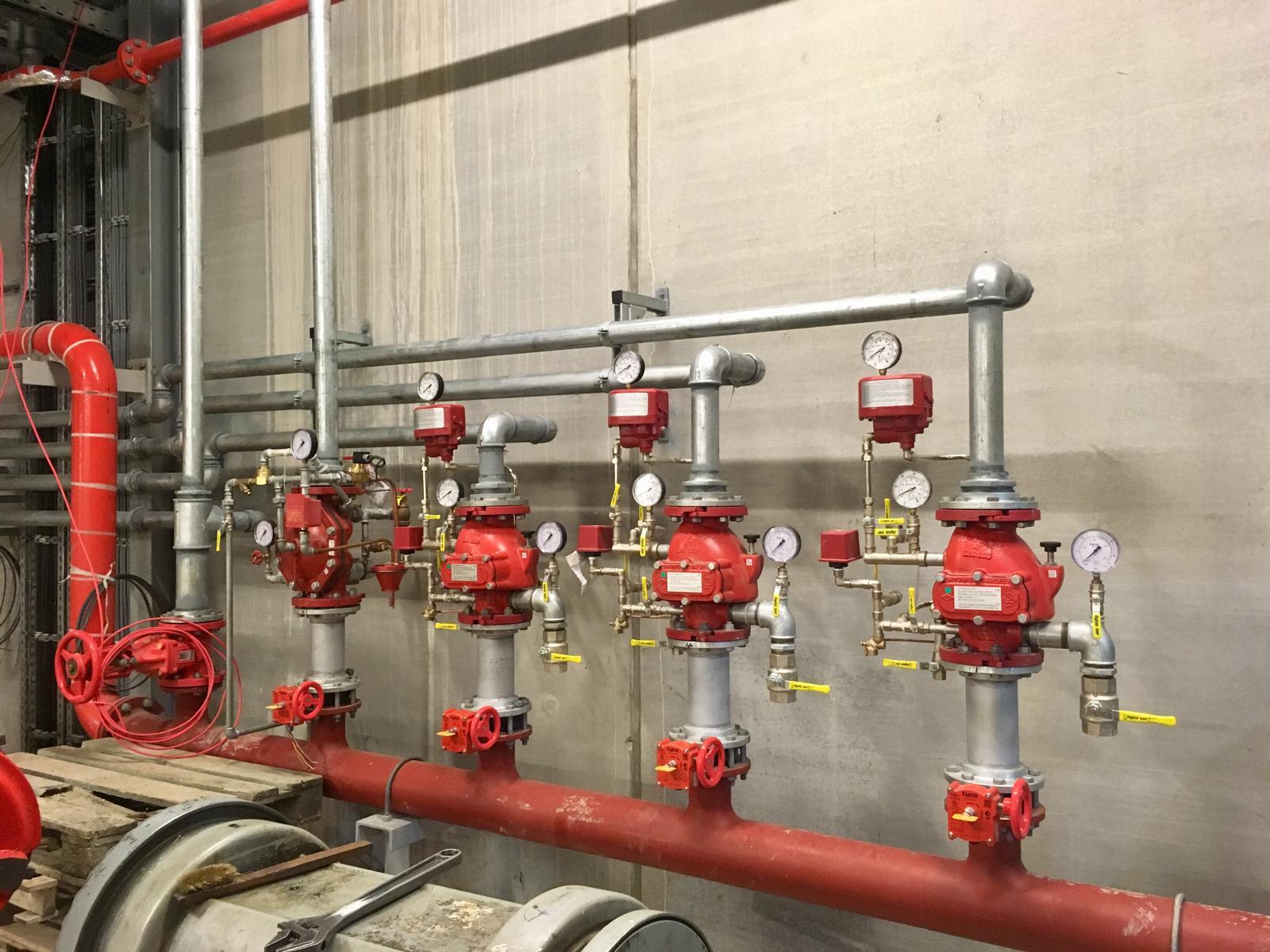

Fire suppressant valve set and gauges

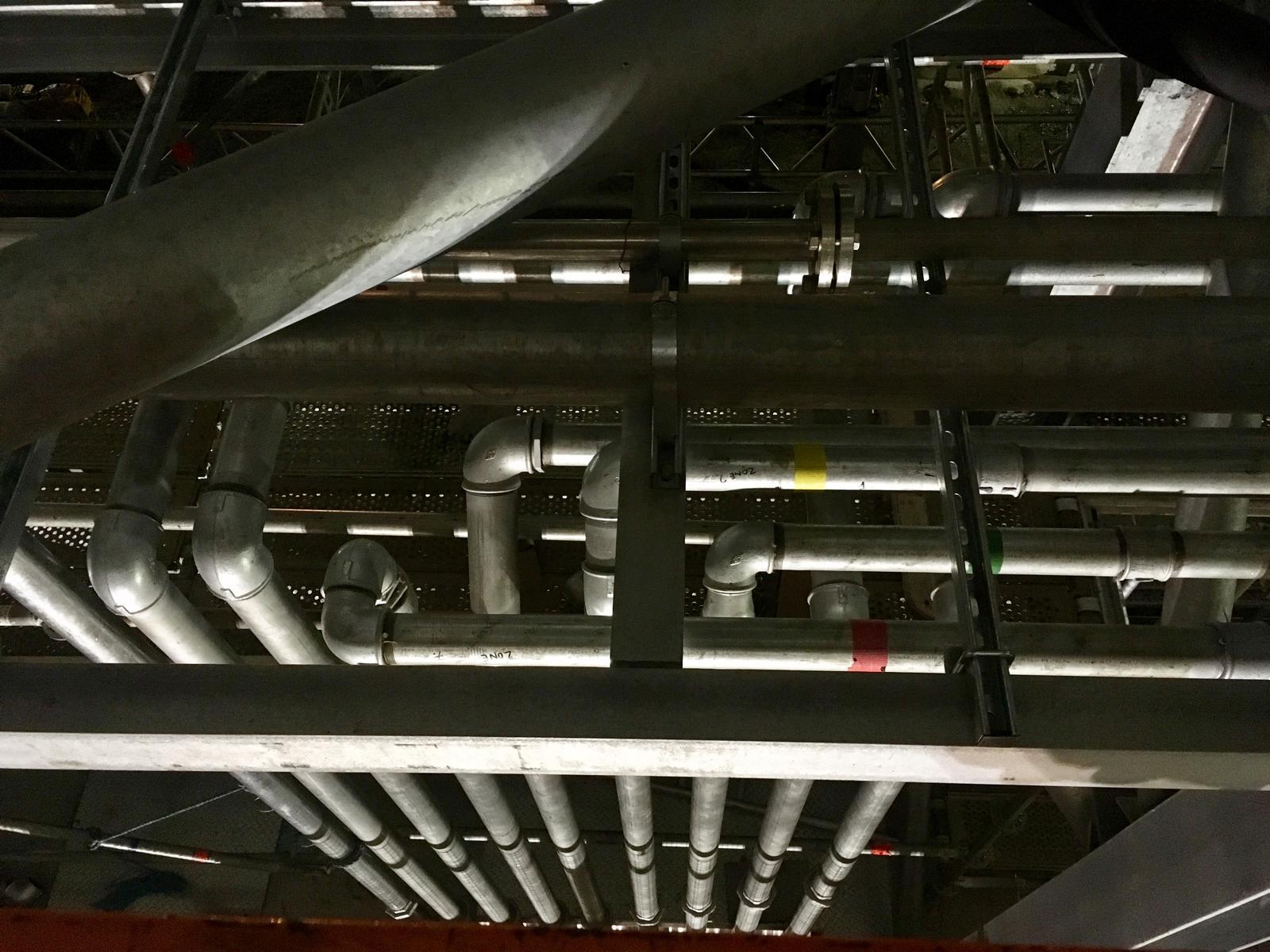

Overhead process pipework at Discovery Park
Red deluge valve stations with a pipe threading machine on site

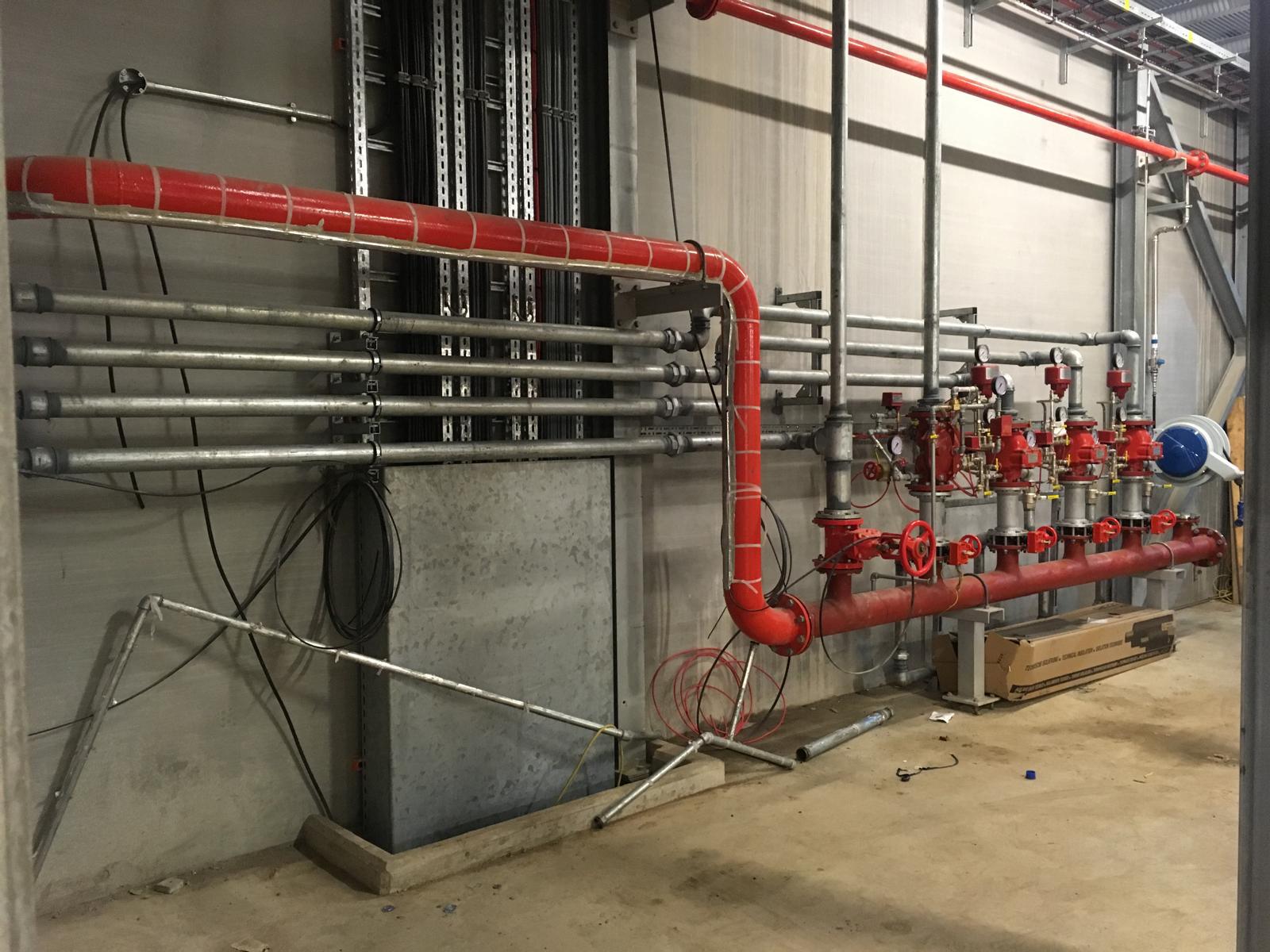

Process pipework and supports in the biomass plant

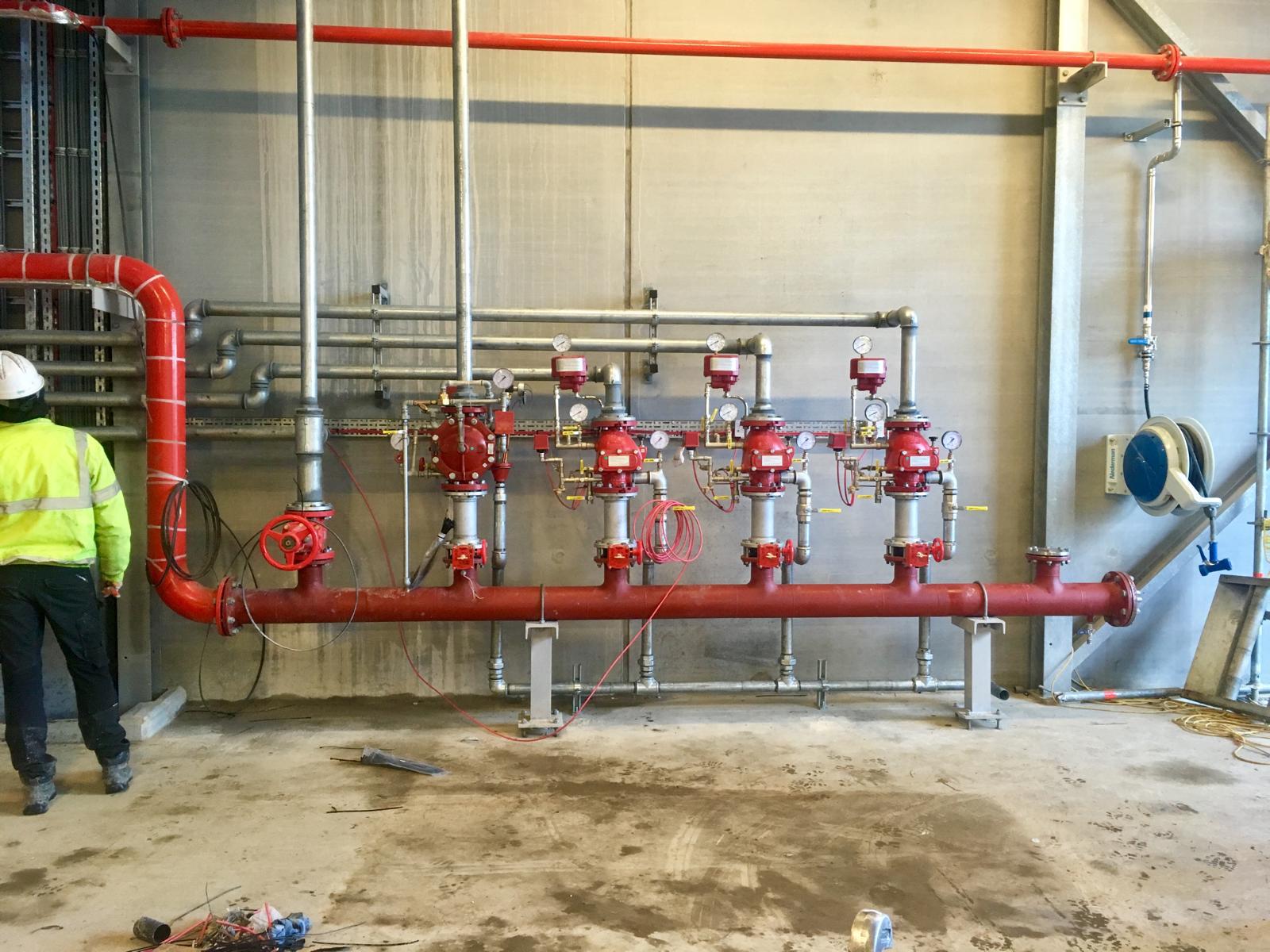

Fire main and process lines through the building

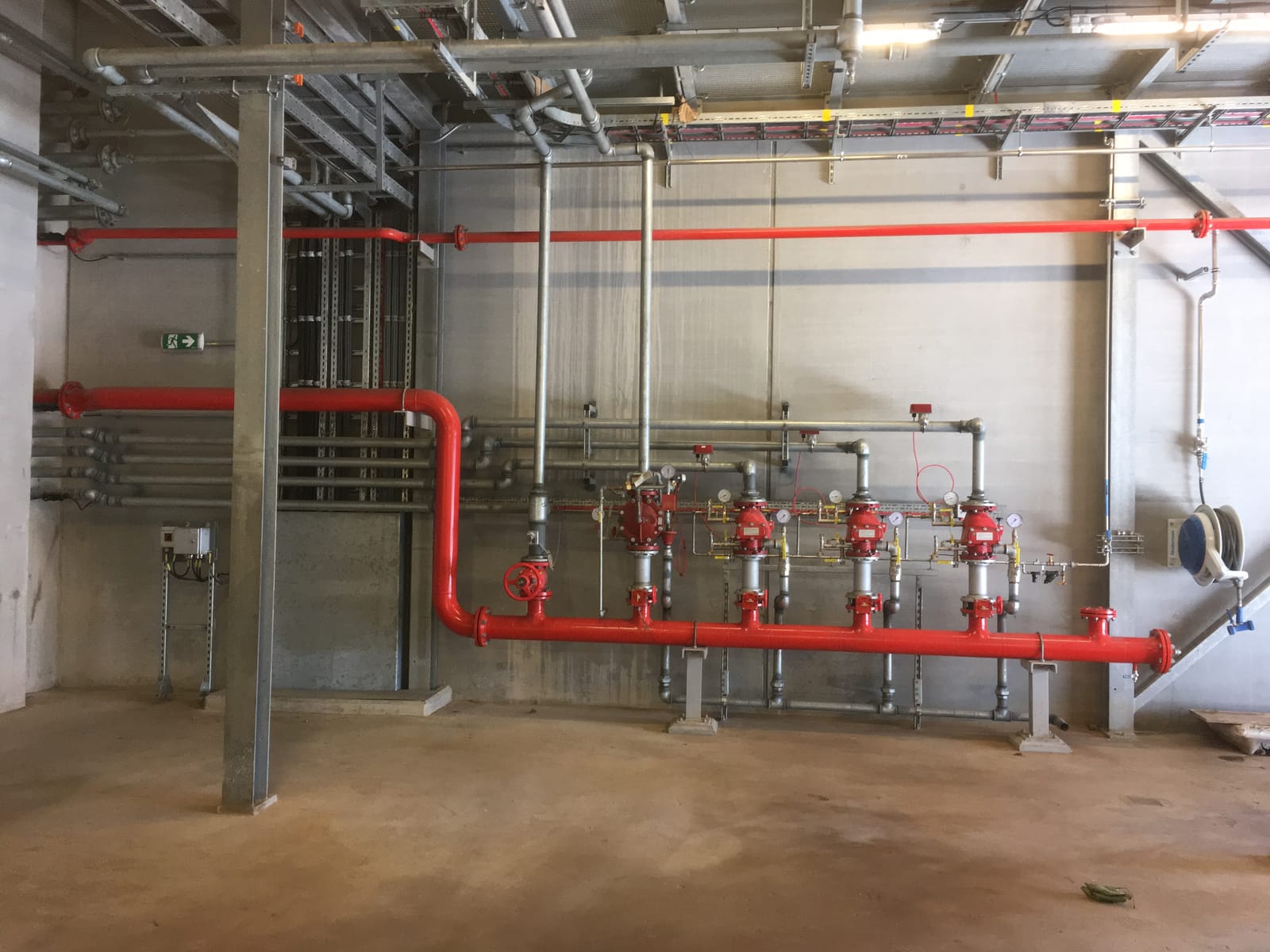

Red deluge valve sets on the fire main in the plant room

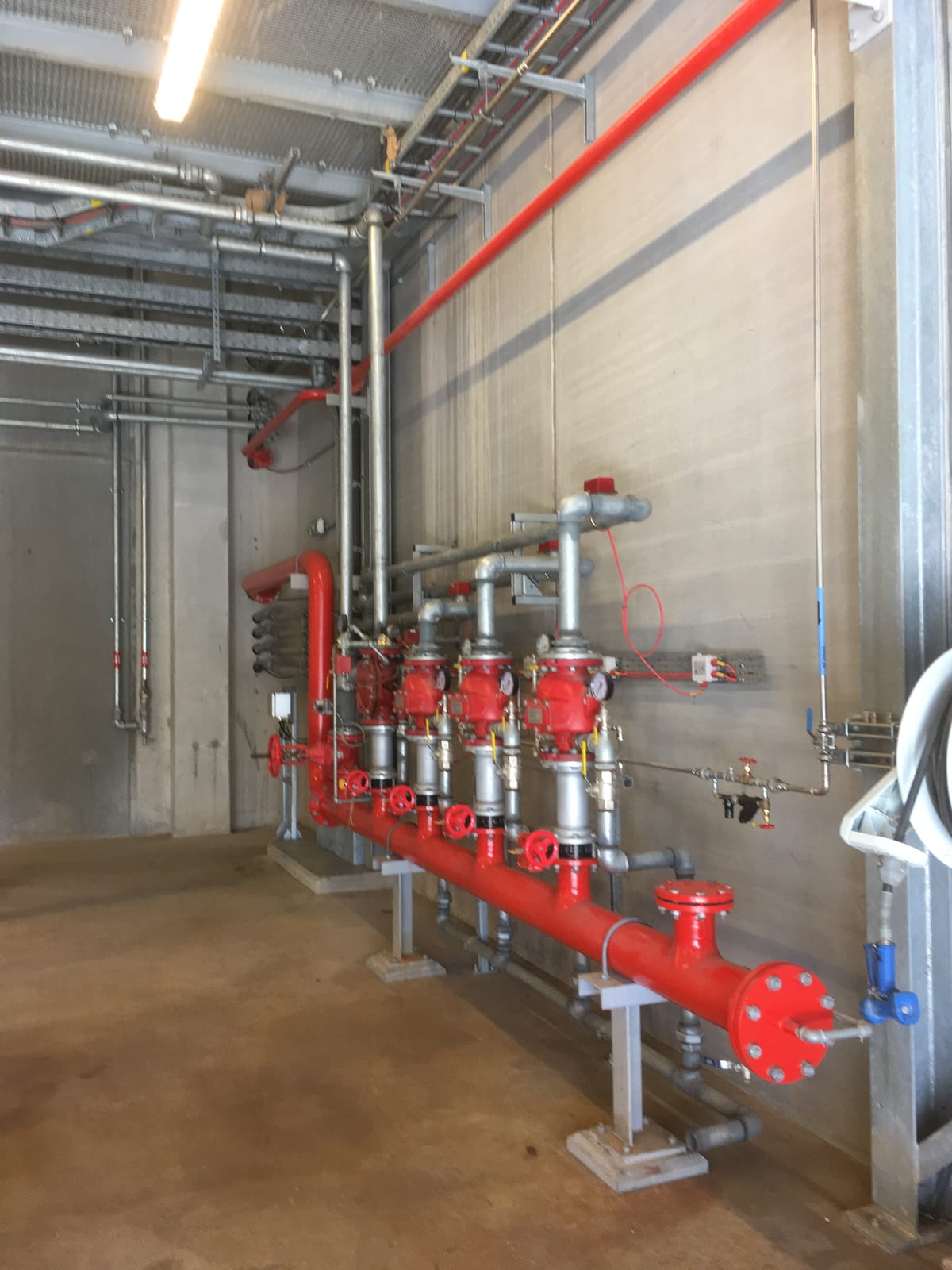

Red fire main and valve sets running along the plant room wall

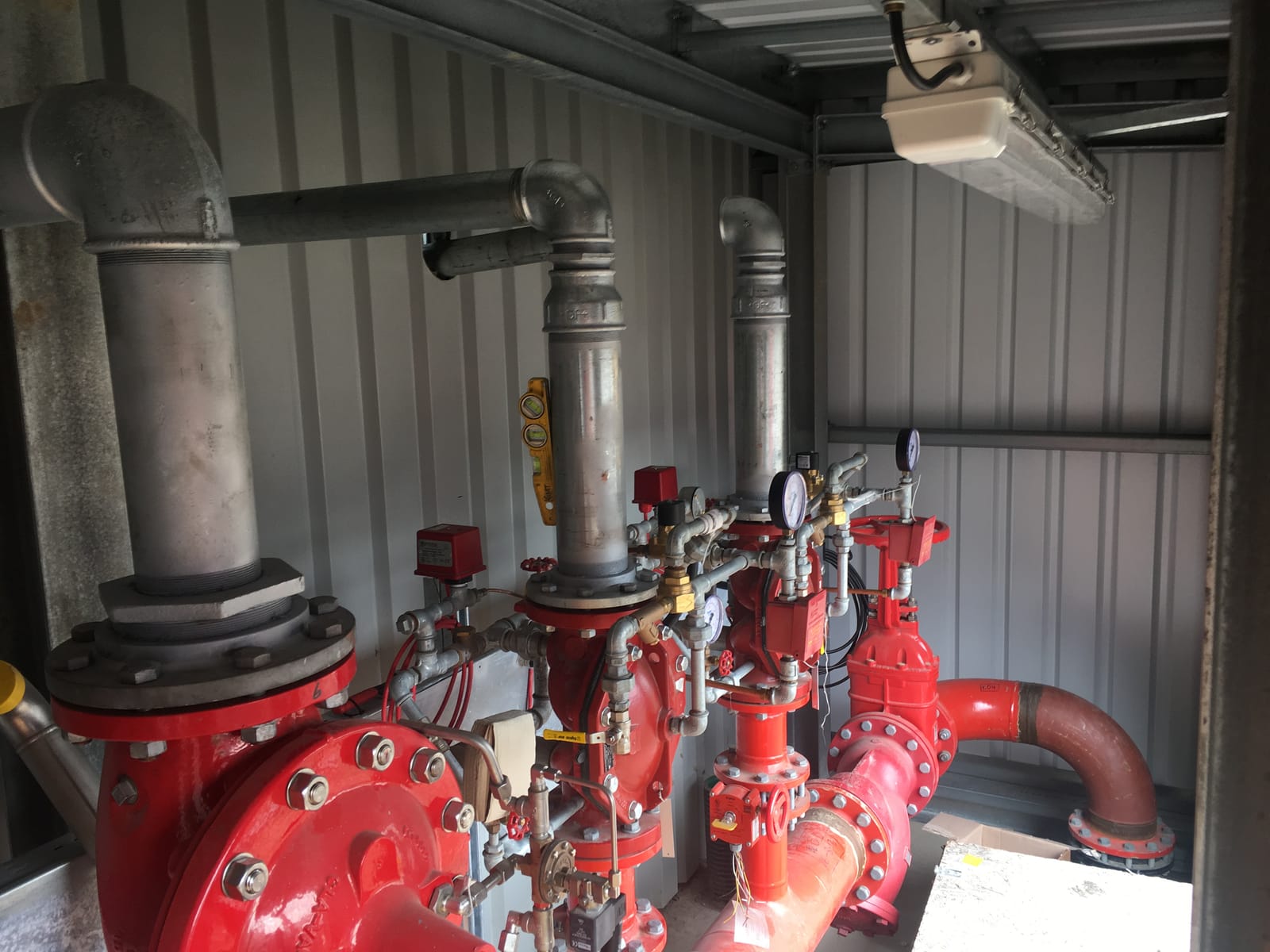

Red deluge valve set and gauges in the plant room

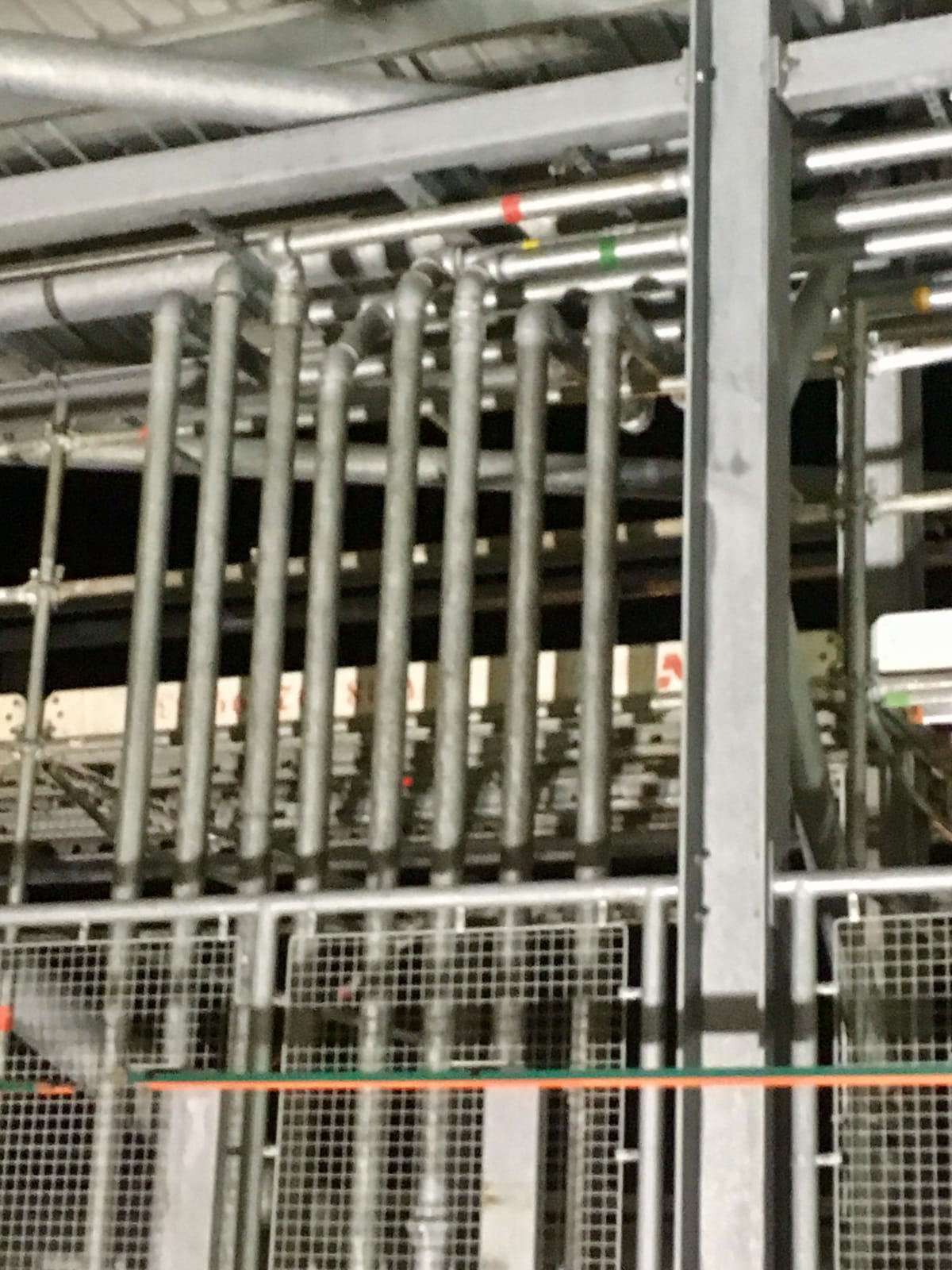

Bank of galvanised risers running floor to ceiling

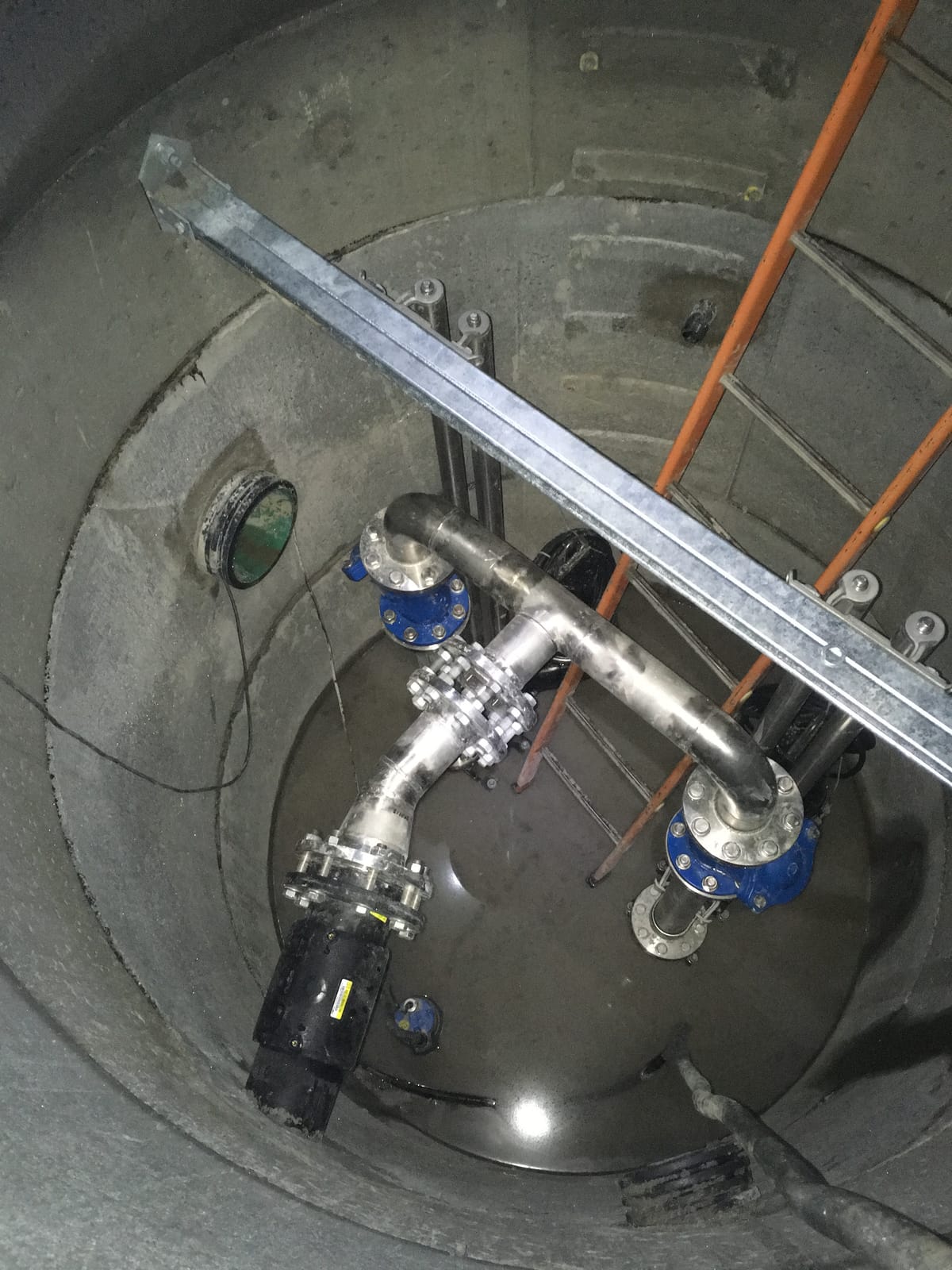

Stainless hydrant tee and valves set into a concrete chamber

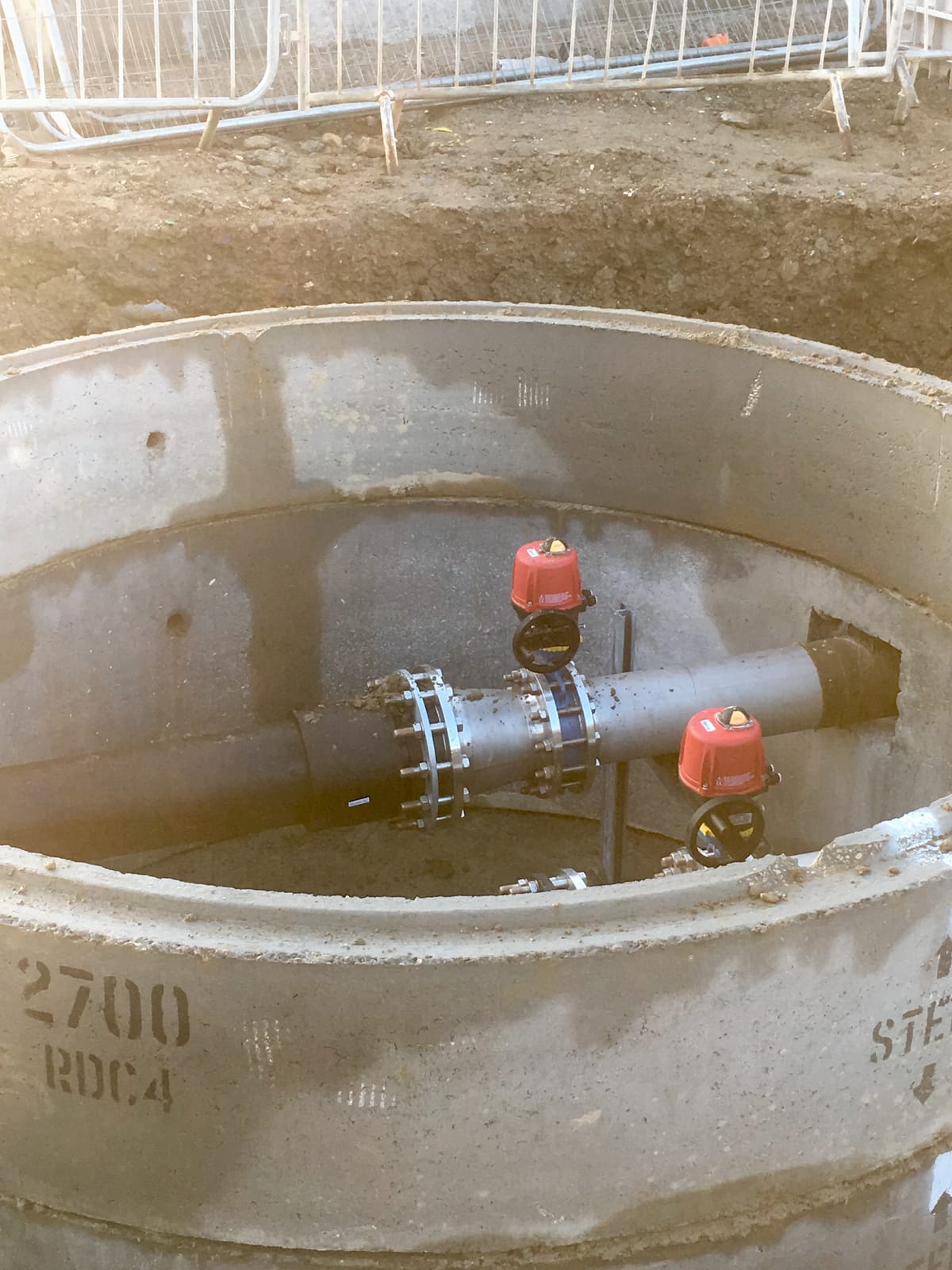

Hydrant pipework and red capped valve in the chamber

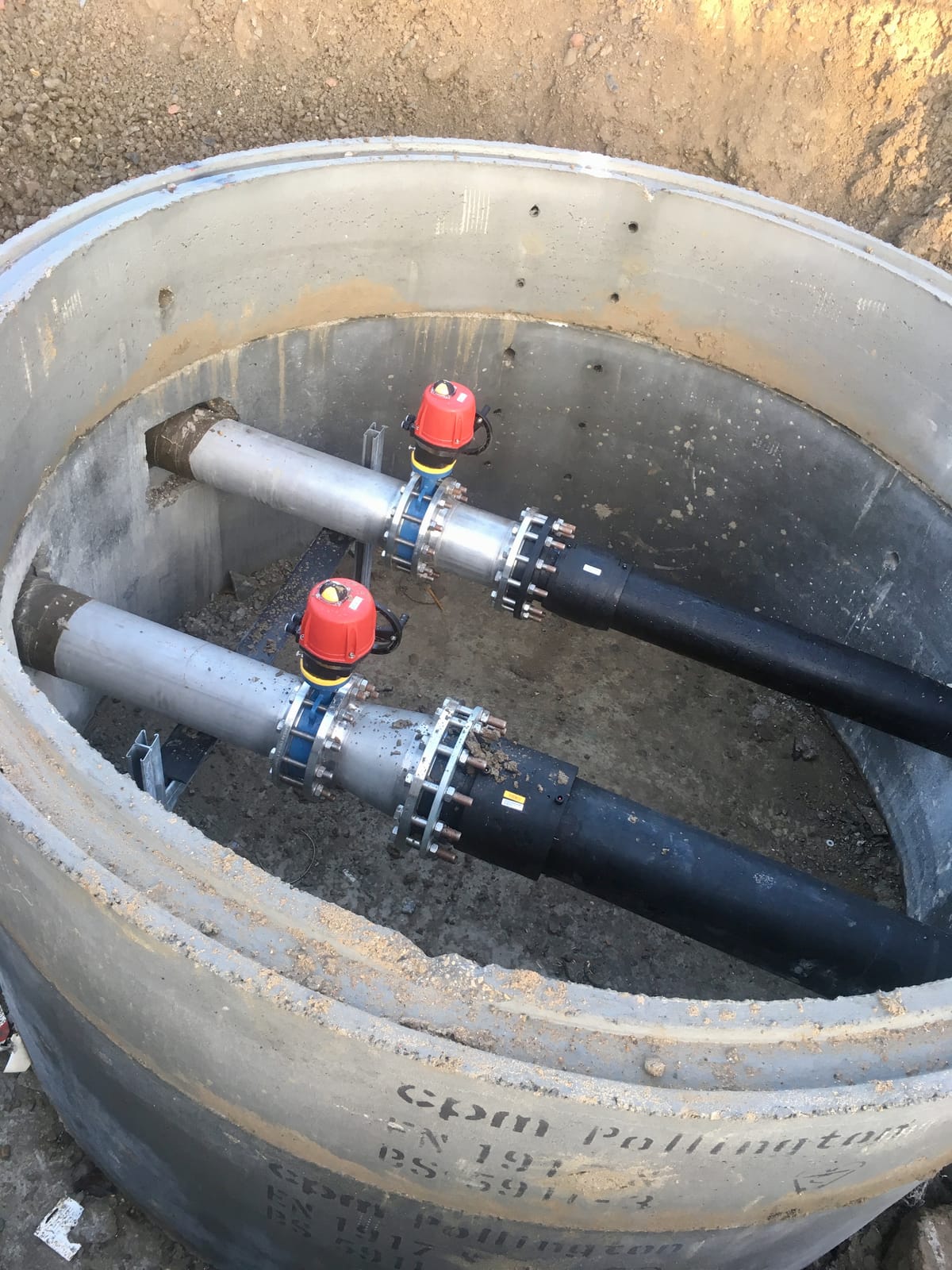

Twin hydrant lines with red capped valves in the chamber

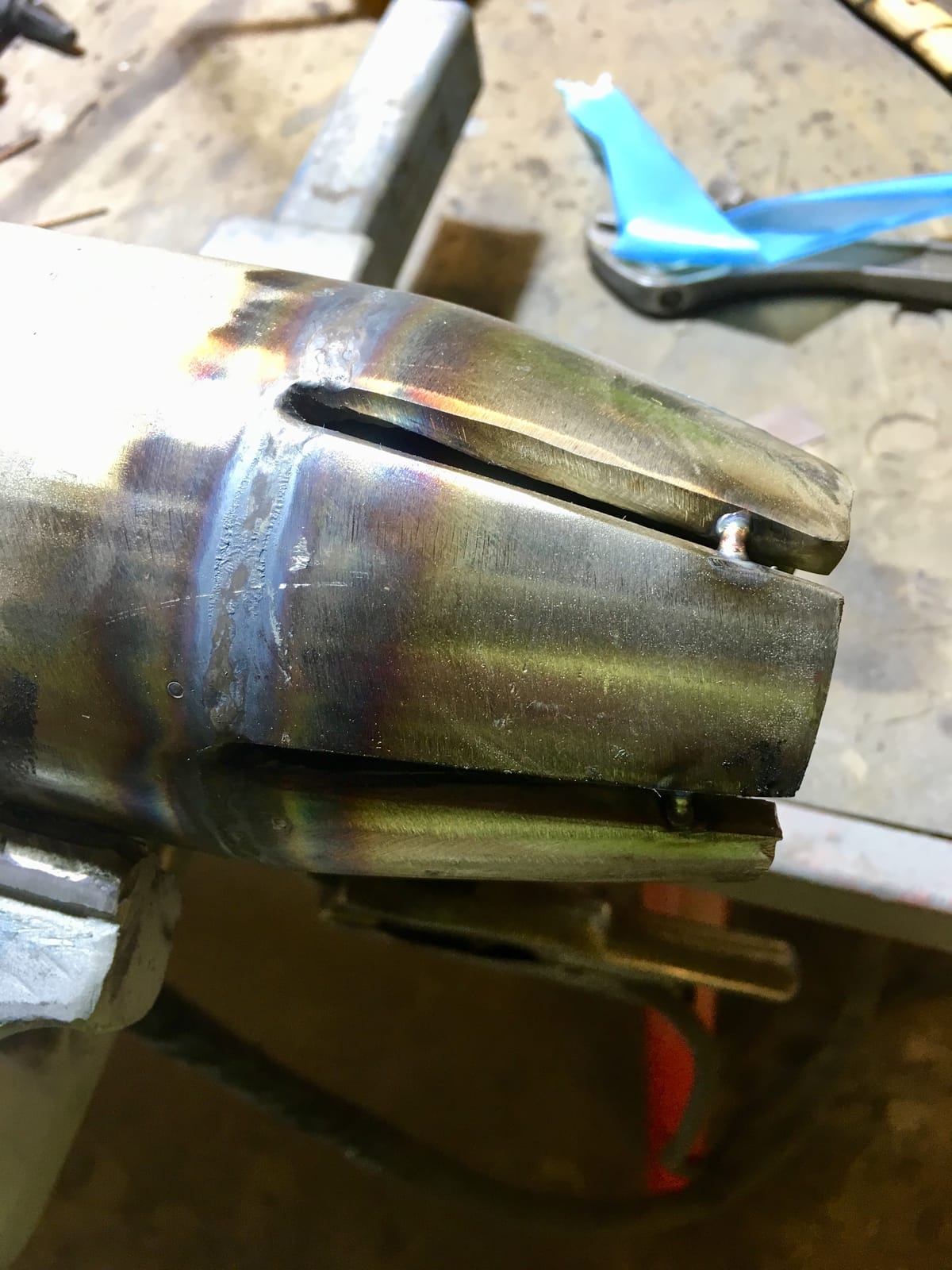

Welded stainless spool with a cut branch opening, clamped on the fabrication bench

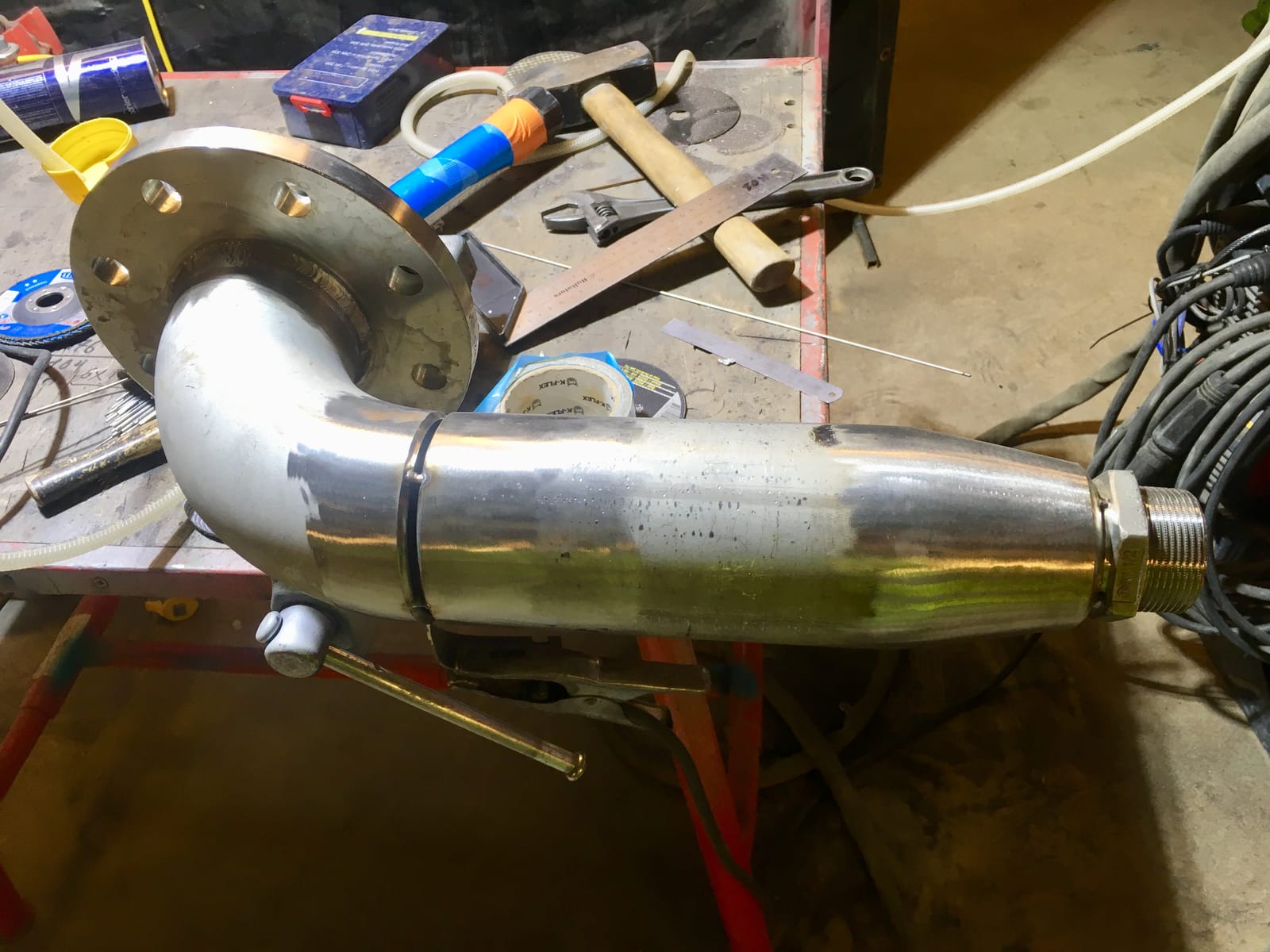

Welded stainless bend and reducer on the fabrication bench

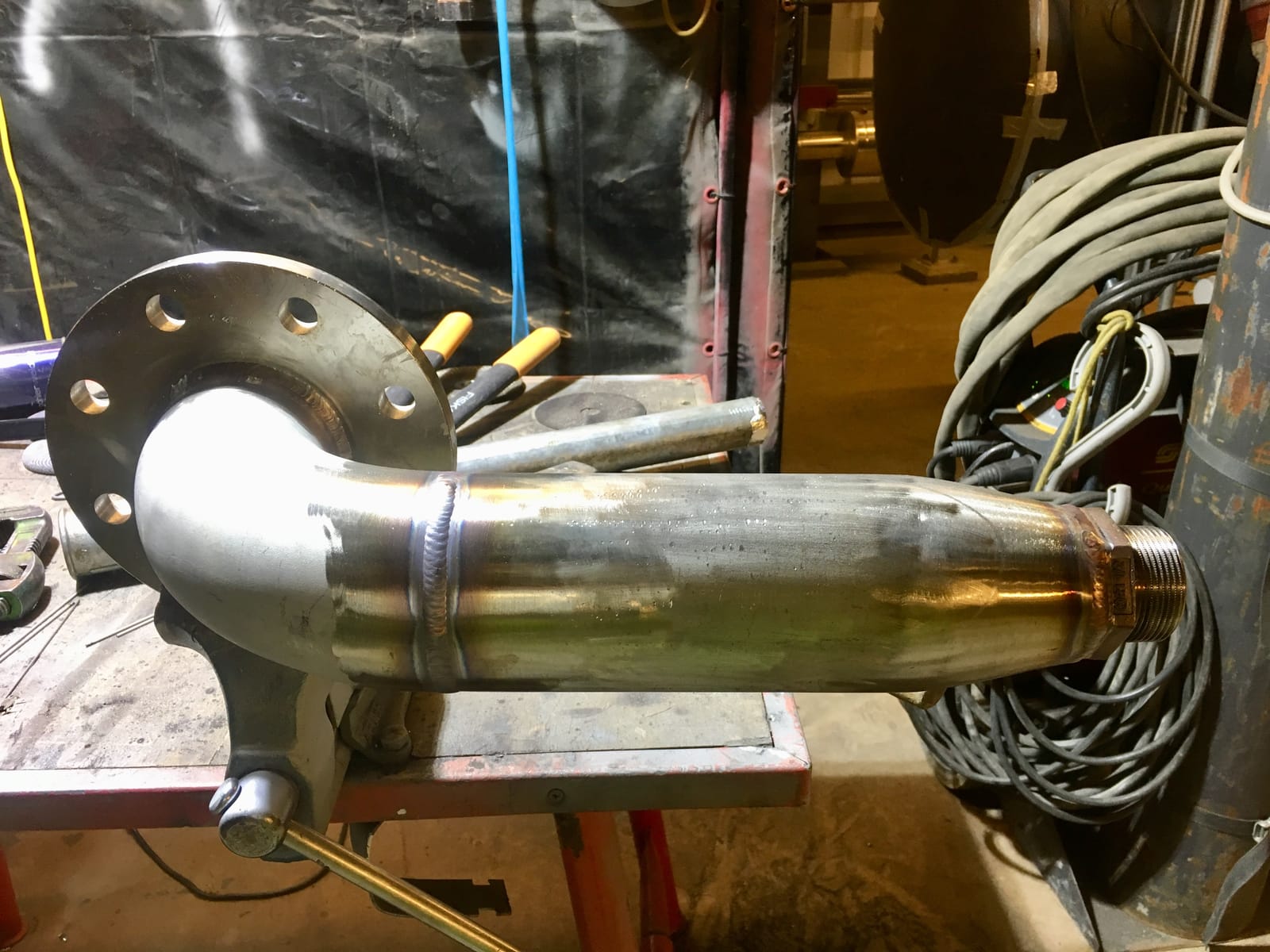

Flanged stainless spool with a branch, on the fabrication bench

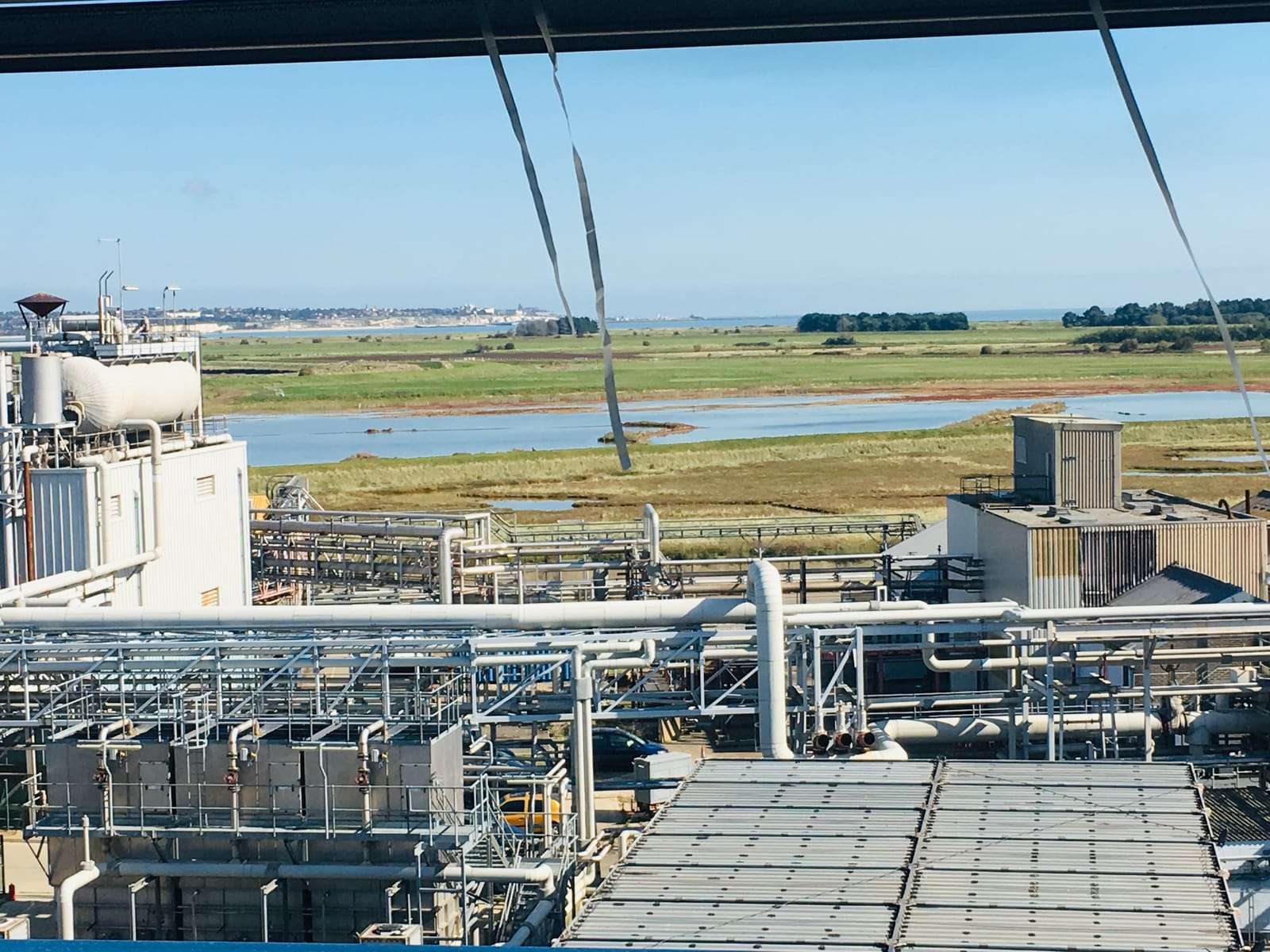

The works at Discovery Park seen from height, with the marshes and the Kent coast behind

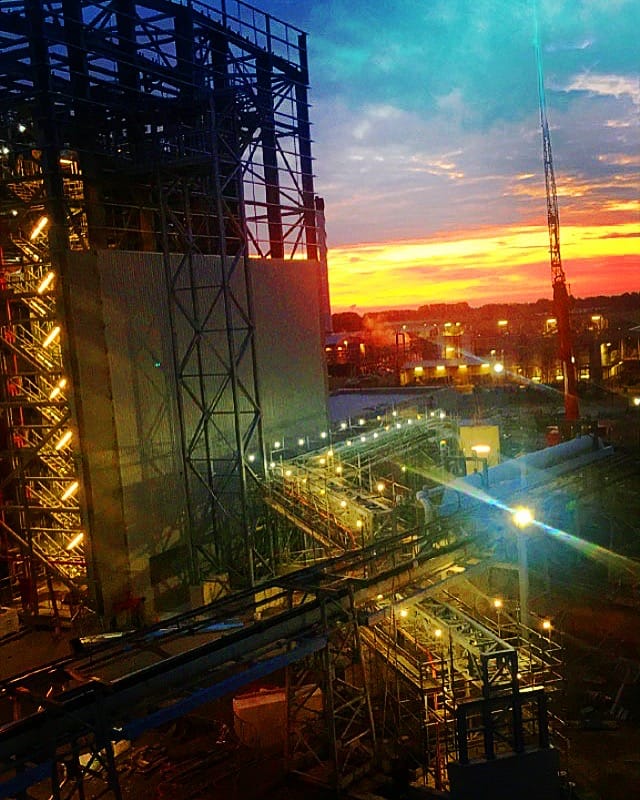

The Discovery Park site lit at dusk during the build
